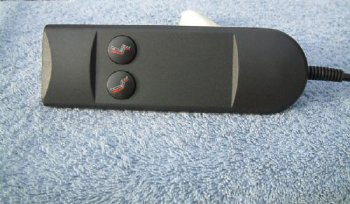

The P111 Lift Chair Hand Control For Okin & Dewert Has Round 5 Pin Connector And Two Round Buttons. It has been replaced by our P112 Style with larger white buttons. The p112 and p111 are interchangeable. This control replaces Dewert and Pride Hand Controls also. This is the style you will find on many La Z Boy, Best, and other numerous other brands. The Pride and Dewert tan colored hand controls with the paddle / toggle type switch can be replaced with this button style switch for simple up and down control.
A bad hand control is the most common lift chair problem:
If you have recently been having to fiddle with the hand control to get the chair to move and now it will go up, but not down, or, down but not up, or, has finally completely quit working then you most likely have a bad hand control. Logically if the chair moves at all you know you have power from your power supply and your motor is able to move. Thus, your motor and power supply are most likely good. You can easily check your power supply with a volt meter. It should be putting out 25 to 33 Volts DC. You can click on the videos link at the bottom left of this page and view the Deltadrive trouble shooting video. (The hand controls are a bit difficult to test accurately. Often trying your bad one on another good working chair is the simplest way to test them)
About 85% of all lift chair electronic problems described above are simply solved by installing a new hand control. The hand control plugs in easily, just like plugging a keyboard into a computer.
