Okin Power Supply For 24V DC Motors With Battery Back Up. This model replaces older heavier model pictured with nine volt batteries showing. This model accepts the model #120 cord shown below.



This is the most commone Okin power supply for simple up and down chairs with 2 button hand controls and the two prong cable with two prongs, (One flat prong and one round prrong, pictured)  The main old style power supply was the  (3.00.207.036.00). The new style is more of a rectangular shape, (pictured). It has a green light indicator that is very handy. It feeds back less power into the chair when it is not in use. It has a compartment that accepts the two nine volt batteries for back up. The new supply is product number 3.00.209.014.00 shown below.



This Old Style 3.00.207.036.00 and others that look like it such as the 3.00.210.002.00, and the 3.00.207.011.00 power supply without a place for nine vold batteries and the old style rectified cable are replaced by the New Style 3.00.209.014.00 Shown in the bottom photo.

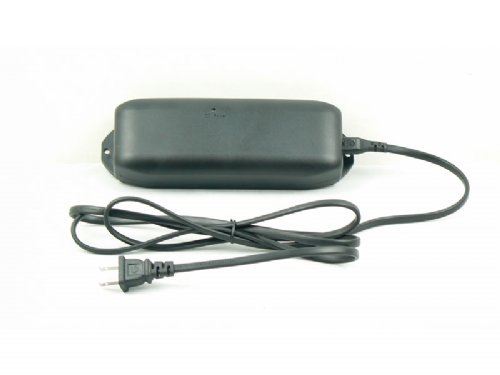

New Style Power Supply For Chairs With Simple Up And Down
This is what we ship for your order. This is the newest model.
Model #: SP-SW-2-0-1-01-20    Version #: 3.00.209.014.00



The two prong cable, our part #P120 cable that looks like this picture below plugs
into the end of the new power supply above and connects to a similar female pigtail on the motor, or
it may plug into a junction box.
