We Carry
Okin, Okin Parts, Okin Part, Hubbell, Motors, Gears, Switches, Hand
Controls, Tubes, Fork Heads, Power Supplies, and More.
We have parts for repairing most brands of electric lift chairs, Deskdrives,
Deltadrives, Betadrives, electric
adjustable beds, electric mobility scooters, and
electric wheelchairs.
Okin,
Hubbell, and Dewert Replacement Lift Chair Parts, Motors, and Hand Controls Are
In Stock.
Your credit card charges will appear on your bill as: "Sunshine
Pharmacy"
CLICK HERE TO VIEW MORE PARTS PHOTOS WE NOW HAVE
AVAILABLE
Buy Now
Free Shipping Via UPS or USPS Ground
Okin DC Motor Hand Control
Deltadrive or Betadrive
$52.49
Ground Mail or UPS (Free)
Used on many brands of lift chairs such as La-Z-Boy,
Pride, Golden, Med-Lift, etc. With long cord and 5 pin round connector
Free UPS Ground Shipping
Okin Deltadrive Motor
Complete
Ground Mail or UPS (Free)
This complete set up is shipped with the new style power supply that also has a place for 2 nine volt batteries for back up power. This is the most common replacement lift chair motor set up.
Please type 11 digit Okin Part Number
in Comment Box at Order Checkout,
if you have it. (ie. 9.28.000.136.30)
Click Here To See Okin Deltadrive Troubleshooting Video
Complete Okin Deltadrive Motor with Hand Control, New Style Switchable
Power Supply and Cable. U.S. or U.K.

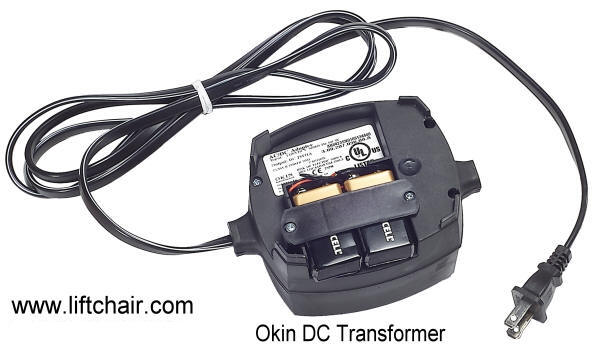

The photo above shows the old style power supply on top. The new style power supply that replaces it is on the bottom.
Okin Delta Drive Motor
With Extension Tube
All Models
Please type 11 digit Okin Part Number
in Comment Box at Order Checkout,
if
you have it. (ie. 9.28.000.136.30)
Motor Only $167.99
Motor
w/ Hand Control $219.99
Motor w/ Power Supply
and Cable $239.99
Motor
w/ Hand Control & Power Supply $247.99
Motor w/ Control, Cable & Power Supply $257.99
Ground Mail or UPS (Free)
Okin Deltadrive Motor
(Some older model will be replaced with
factory refurbished models with any improvements)
(Photo of stroke tube with metal fork head. Plastic shown on motor)
The stroke tube threads onto the spindle nut in a counterclockwise, left handed fashion. Prior to installation please bottom out the stroke tube and then bring it back out one full turn. (It is then screwed all the way onto the spindle nut except for the last turn) Please be careful not to lift up on your leg rest or try to kick in your leg rest manually or you will strip out this spindle nut that is our part #104 below.
9.28.000.129.30
9.28.000.104.30
9.28.000.046.30
9.28.000.070.30
9.28.000.111.30
9.28.000.073.30
9.28.000.058.30
9.28.000.117.30
9.28.000.106.30
9.28.000.092.30
1.28.000.131.30
1.28.000.108.30
1.28.000.074.30
1.28.000.086.30
1.28.000.131.30
1.28.000.050.30
1.28.000.110.30
1.28.000.093.30
1.28.000.110.30
1.28.000.015.30
1.28.000.132.30
1.28.000.122.30
1.28.000.095.30
1.28.000.013.30
1.28.000.015.30
1.28.000.052.30
1.22.000.679.30
1.22.000.568.30
1.22.000.680.30
1.22.000.651.30
and more that may take
longer to ship.
Okin Metal Fork Head For Delta Drive Motor. (Reverse threads onto end of stroke tube)
$28.50
Ground Mail or UPS (Free)
Metal Fork Head For Okin Motors
(Thread on with Blue Loc Tite)
Metal Fork Head
2.00.717.363.30
(This fits Okin Motors, not Dewert)
Okin Plastic Fork Head For Delta Drive Motor. (Reverse threads onto end of stroke tube)
$28.50
Ground Mail or UPS (Free)
Black Plastic Fork Head For Okin Motors
(This fits Okin Motors, not Dewert)
Okin Spindle Nut
$24.49
Ground Mail or UPS (Free)
(May be white or yellow)
(They come in different sizes, Please list your motor number with your order
in the comment box of the order page.
Okin Spindle Nut
FREE Shipping
(This fits Okin Motors, not Dewert)
Okin Moving Block
For Betadrive motors.
$38.49
Ground Mail or UPS (Free)
(May be white or black)
(They come in different sizes, Please list your motor number with your order
in the comment box of the order page.
Please enter your 11 digit Betadrive part number in the comment box of the final order page so we can ship the right moving block. ie. 1.25.000.073.30
FREE Shipping
Okin Stroke Tube With Metal Fork Head
$42.49
Ground Mail or UPS (Free)
Metal Stroke Tube. Free Shipping
(This fits Okin Motors, not Dewert)
#107
Okin Betadrive Motor
With Moving Block
All Models
$187.99
Ground Mail or UPS (Free)
Complete $277.99
Motor, Hand Control, Power Supply, Cable
Please put 11 digit number in comment box
With Extension Tube
FREE UPS Ground Shipping
Please type 11 digit Okin Part Number in Comment Box at Order Checkout
9.25.000.162.30
9.25.000.169.30
9.25.000.053.30
1.25.000.073.30
9.25.000.145.30
1.25.000.139.30
Input and Output Gear Set
For Hubbell Motor
Unavailable
Must Buy Complete
Replacement Motor
GEARS ARE UNAVAILABLE
PLEASE ORDER ENTIRE 109 MOTOR
Hubbell Input and Output Gears For MC-42
(Gears only sold in 18:1 ratio and sold in matched sets)
(Some older motors used 16:1)
(You must replace both old gears with both new gears)
How to replace
Hubbell Gears
Installing a Hubbell Motor into a Liftchair (Our Way)
How To Replace
Hubbell Motor (Photos)
Golden Hubbell Motor
Diagram
For Hubbell Motor - FREE Shipping
#109
Complete MC-42 Hubbell Replacement Motor With Hand Control
$248.59 Complete with Hand Control
$198.49 Motor Only
Ground Mail or UPS (Free)
New Replacement (above)
We Have Very Good Luck With These
Old Original Style (above)
Complete Hubbell MC-42 Motor
Includes Hand Control, Stroke Tube,
Cord, and Capacitor. FOUR prong connector
How to replace
Hubbell Gears
Installing a Hubbell Motor into a Liftchair (Our Way)
How To Replace
Hubbell Motor (Photos)
Golden Hubbell Motor
Diagram
MS-1000 Replacement Motor For Hubbell MC-42
(These are what the new motors we are shipping look like.)
The combination motor with hand control is
best so you don't have to worry about matching
up your old hand control to the new 4 prong style connector.
FREE Shipping Via UPS Ground
Hubbell MC-42 Motor only with 4 prong
connector pigtail is $239.00
Only a 4 prong
connector hand control
will fit this motor, So,
if you have
a
3 prong it is best to order the
complete motor with hand control.
Hubble Hand Control
4 prong
Hubbell Hand Control with 4 prong connector:
$62.49
Ground Mail or UPS (Free)
4 prong connector is standard.
(Color shipped may be black)
Hand Control with 4 prong connector is standard.
If you have a 3 prong connector you need to by a new motor and hand control or hire an electrician to wire the new hand control to your old motor.
Okin DC Motor Hand Control
Beta Drive
$52.49
Ground Mail or UPS (Free)
This hand control is interchangeable
with the #112 below
(We will ship the 112 with the white button style)
How to replace
Okin Hand Control
Used on many brands of lift chairs such as La-Z-Boy, Pride, Golden, Med-Lift, etc. With long cord and 5 pin round connector
Okin DC Motor Hand Control
Deltadrive or Betadrive
$52.49
Ground Mail or UPS (Free)
Used on many brands of lift chairs such as La-Z-Boy, Pride, Golden, Med-Lift, etc. With long cord and 5 pin round connector
Free UPS Ground Shipping
Okin DC Motor Hand Control With Disconnect.
Fits Golden
$69.00
Ground Mail or UPS (Free)
Free UPS Ground Shipping
Bottom Cord with quick disconnect and
five prong round connector. $26.95
Hubbell Hand Control + Heat/Vibe
$99.00
Ground Mail or UPS (Free)
Free UPS Ground Shipping
Two Motor Okin Hand Control
$99.00
Ground Mail or UPS (Free)
Okin Hand Control for Med-Lift 5555
Free UPS Ground Shipping
For Hubbell Hand Controls
(MP5PR)
CURRENTLY
UNAVAILABLE
THIS #115 (MP5PR) SWITCH IS UNAVAILABLE
YOU WILL NEED TO ORDER THE ENTIRE
#110 HAND CONTROL ABOVE
This fits the newer hand controls for Hubbell Motors.
UNAVAILABLE PLEASE ORDER THE ENTIRE
#110 HAND CONTROL ABOVE
For Hubbell
DeWert
Emerson
Pride
Von Weiss
Hand Controls
(SWS48SE)
$31.99
Ground Mail or UPS (Free)
#116
For Hubbell Hand Controls
For Dewert Hand Controls
For Pride Hand Controls
For Emerson Hand Controls
(Fits and works in Von Weiss handle, but is slightly larger)
FREE Shipping
Okin Power Supply For 24V DC Motors
Okin Power Supply
#119 Only ($67.99)
Ground Mail or UPS (Free)
Works For Both
Deltadrive and Betadrive Motors

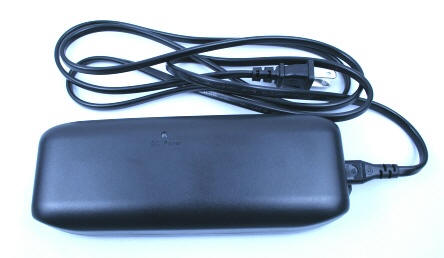

New Style Power Supply For Chairs With Simple Up And Down
This is what we ship for your order. This is the newest model.
Model #: SP-SW-2-0-1-01-20 Version #: 3.00.209.014.00
With Battery Back Up 3.00.209.014.00.
This model replaces models without battery back up such as 3.00.207.011.00.
It replaces models with battery back up such as 3.00.207.036.00,
3.00.210.002.00, 3.00.210.019.00,
3.00.210.992.00, and 3.00.210.002.30,
This model accepts the model #120 cord shown below and does not require
the #121 rectified cable shown below.
___________________________________________
Many other models with round 3 or
5 pin pigtail connectors are available. Please email us your 11 digit part
number for a quote. Or scroll down
to 132 and 133.
____________________________________________
#119 Okin Power Supply For 24V DC Motors With
#120 Cable
Okin Power Supply With Cable
$90.99
#139 Combo ($90.99)
Includes #119 + #120
Power Supply With
Cable and AC Wall Cord
Ground Mail or UPS (Free)
Okin Cable
$24.50
Ground Mail or UPS (Free)
Free Ground Shipping
Okin Cable w/
rectifier
$26.50
Ground Mail or UPS (Free)
Hubbell
Tube
$42.50
Ground Mail or UPS (Free)
(Tube must be removed and replaced from the gear end of the worm drive, not
screwed off or back onto the end of the worm drive where you see a phillips
head type slot)
How to
replace Hubbell Gears And Tube
How to replace
Hubbell Gears
Installing a Hubbell Motor into a Liftchair (Our Way)
How To Replace
Hubbell Motor (Photos)
Golden Hubbell Motor
Diagram
$49.90
Free UPS Ground Shipping
Stripped stroke tube threads and stripped gears are the most common Hubbell Motor problems.
Reading Lamp
$69.90
Ground Mail or UPS (Free)
Free UPS Ground Shipping
Screws onto top side of chair with a
quick disconnect bracket. 7 watt u shaped light gives off a very comfortable
warm color of light
Rechargeable
Battery
Back UP
For Okin Motors
$89.00
Ground Mail or UPS (Free)
Works with all Okin Motors in chairs without heat and massage and up and down on one hand control.
(Works with hand control like #112 above)
$89.00
Free UPS Ground Shipping
Capacitor For Hubbell Motor
$42.50
Ground Mail or UPS (Free)
$45.90 - FREE Shipping
$22.49
Hubbell Limit Switch
(No Photo)
$109.00
Ground Mail or UPS (Free)
Okin Round Six Pin Connector 3.00.207.040.00, 3.00.210.041.00 and similar
(Round 3 Pin Connector)
Please include your Okin 11 digit part number in the comment box of the final order page. $109.00 - FREE Shipping
$98.49
Ground Mail or UPS (Free)
Okin Round Three Pin Connector 3.00.207.037.00 , 3.00.210.040.00 and similar
(Round 3 Pin Connector)
Please include your Okin 11 digit part number in the comment box of the final order page. $109.00 - FREE Shipping
Ground Mail or UPS (Free)
Click on photo above for large view.
$99.00
Ground Mail or UPS (Free)
La Z Boy Model 11540 Hand Control
Model 11540
