Hand Control w/ Extension Cable & Light

Hand Control w/ Extension Cable & Light
Hand Control w/ Extension Cable & Light
Hand Control w/ Extension Cable & Light
Hand Control w/ Extension Cable & Light
Hand Control w/ Extension Cable & Light
Hand Control w/ Extension Cable & Light
Hand Control w/ Extension Cable & Light
Hand Control w/ Extension Cable & Light
Hand Control w/ Extension Cable & Light
Hand Control w/ Extension Cable & Light
(Click to see larger image and other views)
SKU: P112AN

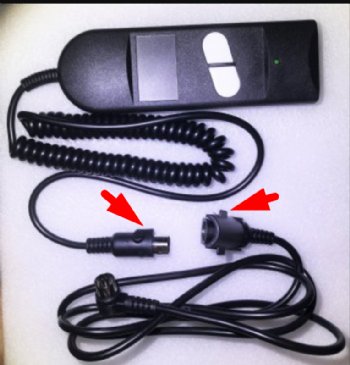

Brand Name Okin heavy-duty hand control works with many models of lift chairs and power recliners. This full-featured model has a green test light and a straight quick disconnect in the middle of the cord that can be placed in the pocket of your chair so you can remove the hand control so children cannot play with it. It replaces parts numbered 1.11.000.241.30, 1.11.000.186.30, 1.11.000.322.30, 1.11.000.213.30, 1.11.000.187.30, and most other hand controls with simple up and down and a round 5 pin connector as pictured. We often ship the upgraded hand control shown in photos with backlighted blue arrows at no extra cost.
Chair Brand: Med-Lift & Mobility
Chair Brand: Golden Technologies
Part Type: Hand Control
Manufacturer: AmFab
$65.45
List Price: $84.00
You Save: $18.55 (22%)
Product Details
Our P112AN Lift Chair Hand Control w/ Quick Disconnect For Okin & Dewert Has Round 5 Pin Connector. Also included is an extension cable to go from the pocket of the chair to the Deltadrive Okin Motor with a straight connector. (Usually, you do not have to replace this extension unless it has become damaged under the chair. This control replaces Dewert and Pride Hand Controls also. The quick disconnect can be installed in the pocket of your lift chair so the hand control can be removed when kids are playing with it too much. It also makes it easier to replace the Hand Set. This is the style you will find on Golden Technologies Lift Chairs, Pride Lift Chairs, Okin,  Dewert, La Z Boy, Best, Berkline, Franklin, Palliser, Best, Med-Lift, and other numerous other brands. The Pride and Dewert tan-colored hand controls with the paddle/toggle type switch can be replaced with this button style switch for simple up and down control. ON SALE TODAY!

A bad hand control is the most common lift chair problem:

If you have recently been having to fiddle with the hand control to get the chair to move and now it will go up, but not down, or, down but not up, or, has finally completely quit working then you most likely have a bad hand control. Logically if the chair moves at all you know you have power from your power supply and your motor is able to move. Thus, your motor and power supply are most likely good. You can easily check your power supply with a voltmeter. It should be putting out 25 to 33 Volts DC. You can click on the videos link at the bottom left of this page and view the Deltadrive troubleshooting video. (The hand controls are a bit difficult to test accurately. Often trying your bad one on another good working chair is the simplest way to test them)

About 85% of all lift chair electronic problems described above are simply solved by installing a new hand control. The hand control plugs in easily, just like plugging a keyboard into a computer.
