La Z Boy / 75000257-00 Hand Control
La Z Boy / 75000257-00 Hand Control
La Z Boy / 75000257-00 Hand Control
La Z Boy / 75000257-00 Hand Control
La Z Boy / 75000257-00 Hand Control
La Z Boy / 75000257-00 Hand Control
(
Click to see larger image and other views
)
SKU:
75000257-00
Brand:
Okin Parts
We get a lot of calls for this part. We currently do not have it in stock.
It is an obsolete part and an obsolete lift chair. Please see our coupons at the left for savings on a New Lift Chair.
When we can ever get it we will make this link active. You would need to call your La-Z-Boy Dealer to find one at this time to the best of our knowledge.
Description:

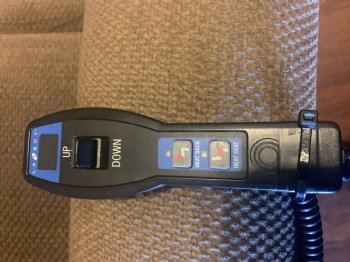

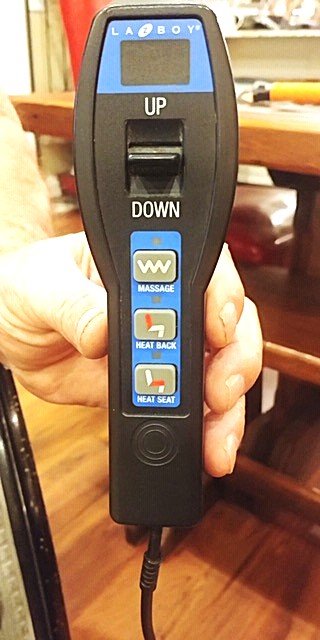

This Hand Control has just an up-down switch with an LCD display at the top and with
a round

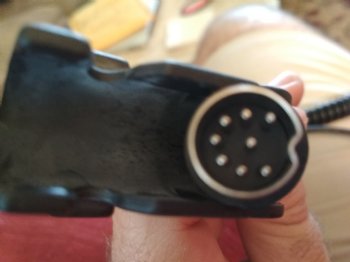

8 pin adapter connector at the end of the cable. Some with a quick disconnect.
back type:
HSC-LAZ-1lf ,
LSB PIN: 75000257-00, 75000242-02

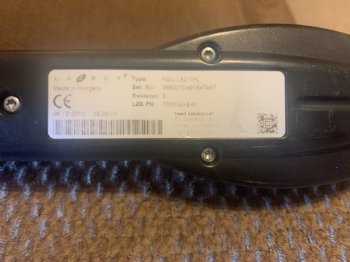

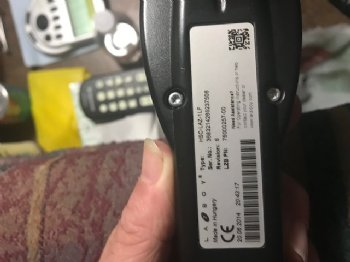

The remote MAY HAVE the following information printed on the back: Type: HSC-LAZ-1LF, Serial # 3683214114901121, Revision 8, LZ8 Pin 75000257-00
75000242-02,
Your power supply may say
EI transformer.
ref number LOG-EEI-120-25-ul
TRANSFORMER NMU
120 60 HZ
29.5 v 1.7a DC
LA Z BOY LUXURY LIFT
POWER FLEX
MODEL 75970182-00
$239.00
Availability
: Currently Out of Stock
This is unavailable
