Limoss MD141 Power Recline Motor Actuator

Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
Limoss MD141 Power Recline Motor Actuator
(Click to see larger image and other views)
SKU: MD141
Brand: Limoss

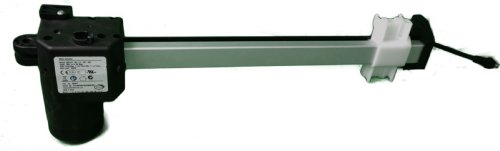

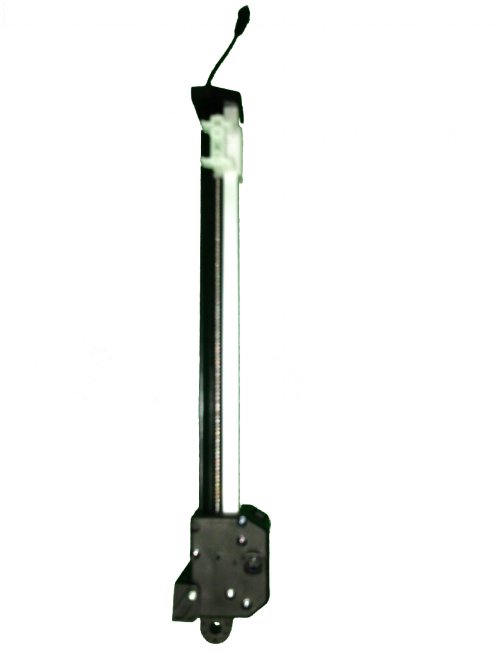

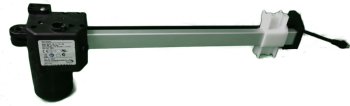

The MD141 Linear Actuator by Limoss comes in specific sizes. Limoss MD141-30-L1-157-333 is the most common size. A common 6 digit part number for it is 450917, etc. The MD141 can replace the JLDQ series of power furniture actuators. A common size is JLDQ 1.156.33 for Ashley, VIP Cinema, Franklin, Lane, Palliser, and Best  Power Recliners, Power Reclining Sofas, and Power Reclining Theater Seating and Cinema Seating. It works well in power recliners enabling them to recline quickly and smoothly. In the motor number box below please fill in your 6 digit Limoss number or your JLDQ number similar to JLDQ 1.156.333 so we can send you the proper size replacement motor.

Common MD141 part numbers for Limoss or Okin are:

JLDQ-1.156.333
JLDQ-11.156.333
1.25.000.211.30
450917
450676
450625
450322
450626
451189
451132

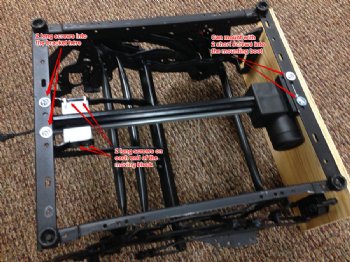

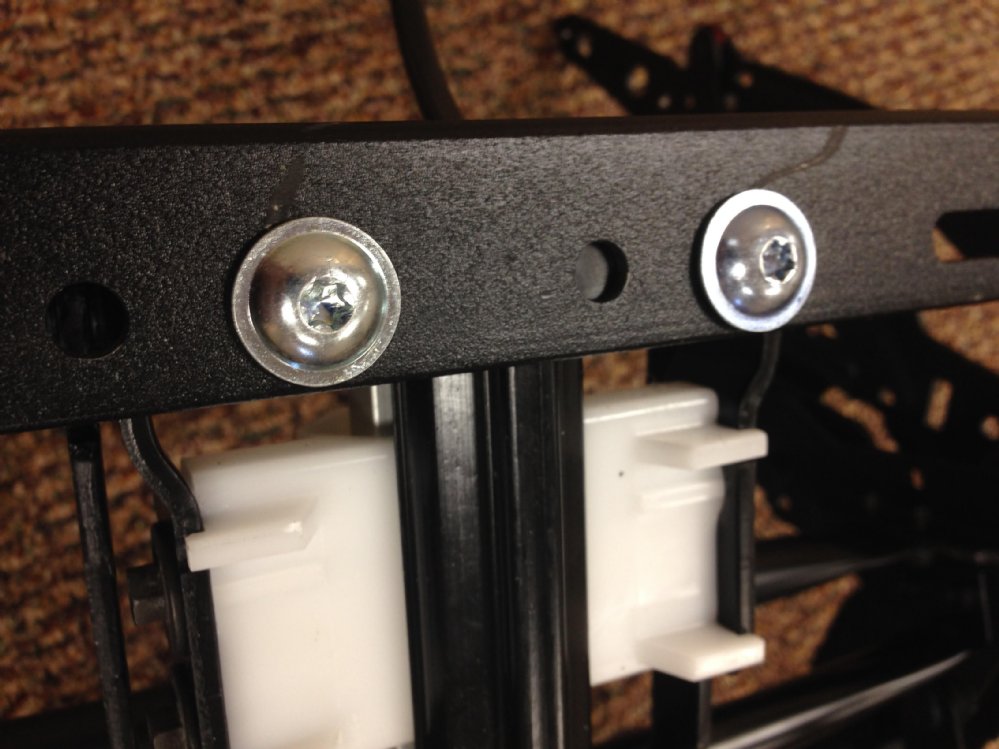

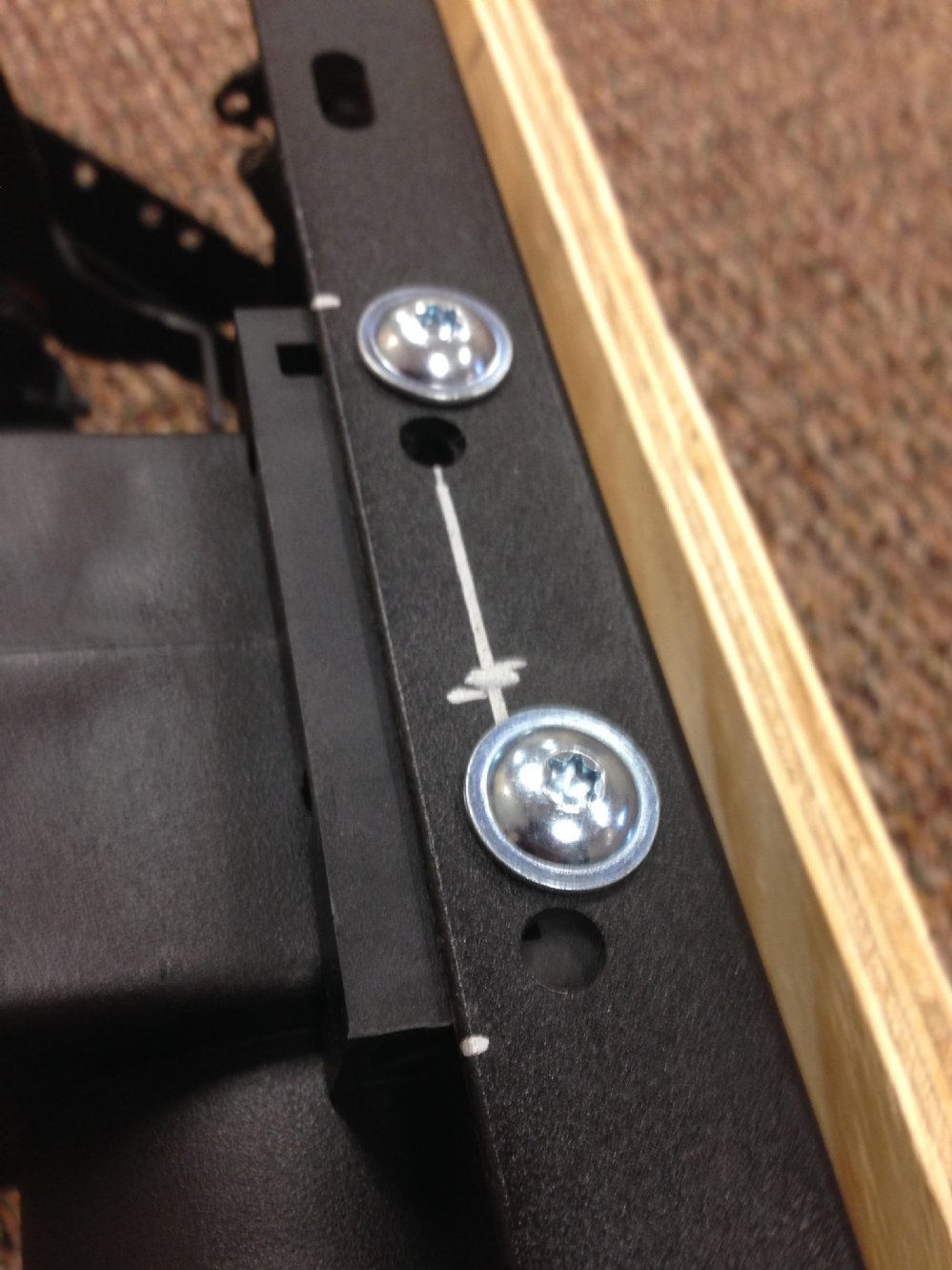

Please refer to the image below for an illustration on how to install this motor. Limoss installation will require a total of 8 screws - 2 short screws for the front of the chair frame, 2 long screws for the back of the chair frame, and 4 long screws for the moving block.

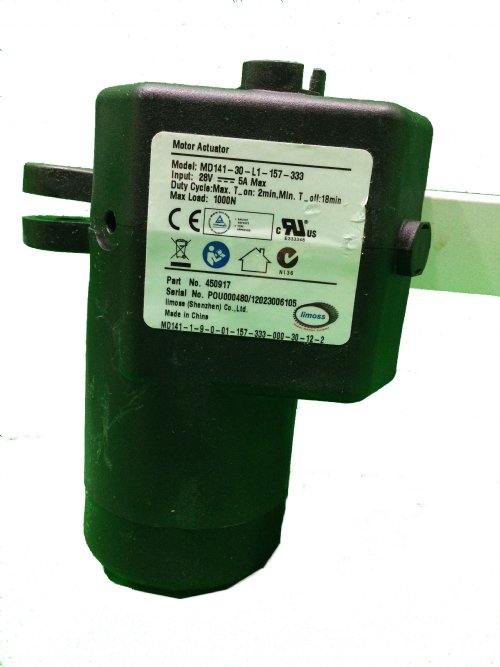

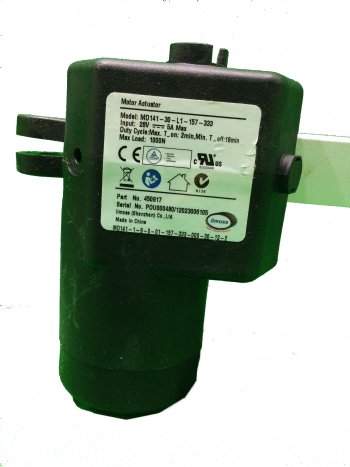

Please enter your 6 digit Limoss Part # ie. 450917 or your JLDQ Part # ie. : JLDQ 1.a-156-333 below. Please enter a "partial number" if that is all you can read on your old label.
Part Type: Motor
Manufacturer: Limoss
$199.00
List Price: $279.00
You Save: $80.00 (29%)
Availability: Typically ships within 7 days
