LMD6208D, LMD6208, LMD6205, LMD6205E Replacement

(Click to see larger image and other views)

SKU: FBS-LMD6208D

FBS or HHC replacement for LMD6208D, LMD6208, LMD6205, LMD6205E. For Single Motor Lift Chairs with 1 lift motor only. This Replacement linear actuator may differ in appearance slightly.

$199.00

List Price: $239.00

You Save: $40.00 (17%)

Availability: Typically ships within 6 days

Previous Item

Next Item

Product Details

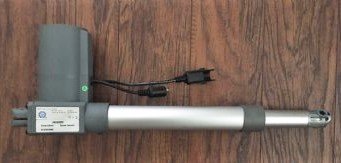

FBS or HHC replacement for LMD6208D, LMD6208, LMD6205, LMD6205E Replacement linear actuator

FOR SINGLE MOTOR LIFT CHAIRS ONLY

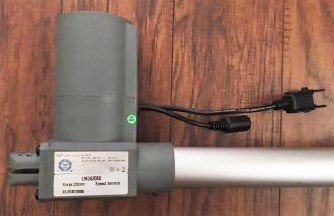

There are four cords coming from this replacement motor:

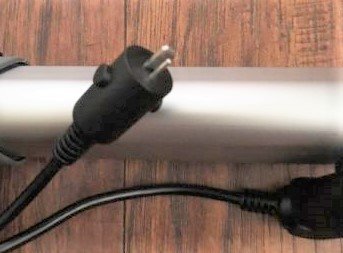

A female five-pin socket or pigtail that the hand control plugs into, and a male two-pin flat pin and round pin plug that plugs into the transformer or power supply.

There will be two extra female two pin connectors you do not use. You will need to zip tie or tuck them out of the way

Most commonly used in Ashley, Catnapper, Medlift, Pride, Megamotion and other brand lift chairs.

This is not a replacement for:
LMD 6208C-U BASE MOTOR or LMD 6208B-S-U BACK MOTOR used in dual motor lift chairs with independent back and leg motors.
