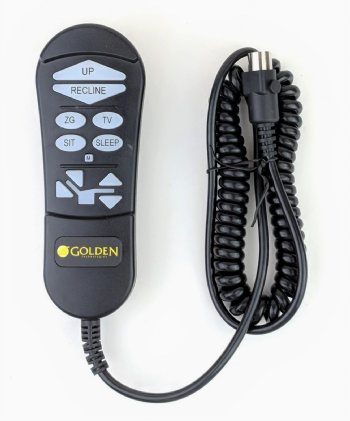

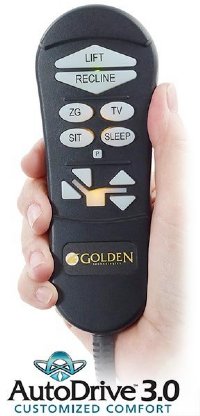

Golden AutoDrive Hand Control for use with Golden Lift Chairs.
Latest version to replace ZKAD-2, ZKAD-3, ZKAD-4, ZKAD-5
ZKAD 2, ZKAD 3, ZKAD 4, ZKAD 5
Fits these models of Golden Technologies Lift Chairs:
Please click here to view the instructions for this hand control.

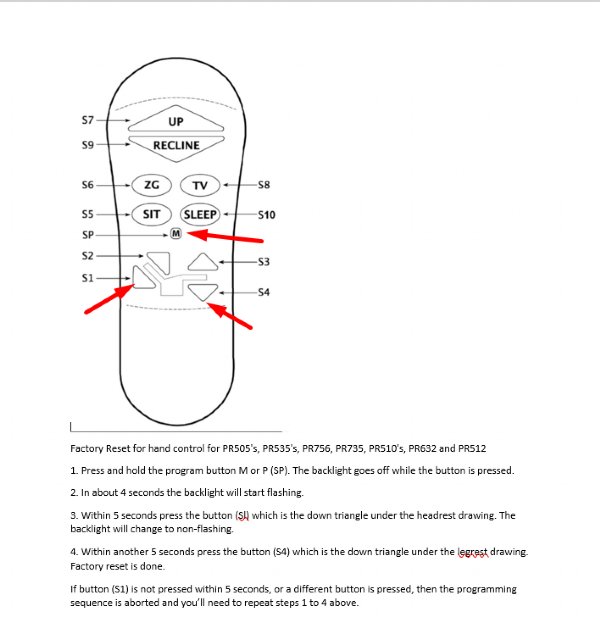

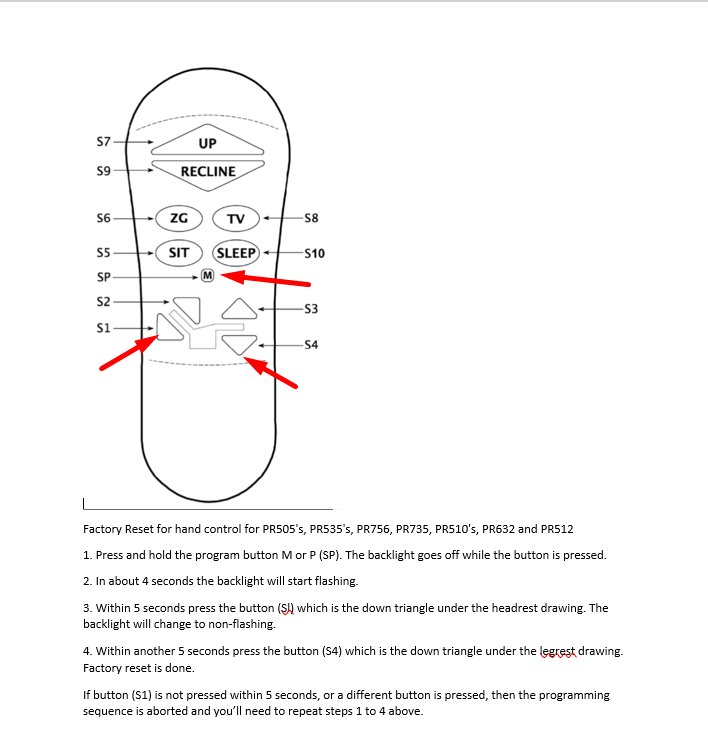

Factory Reset for hand control for PR505's, PR535's, PR756, PR510's, PR632 and PR512
1. Press and hold the program button M or P (SP). The backlight goes off while the button is pressed.
2. In about 4 seconds the backlight will start flashing.
3. Within 5 seconds press the button (Sl) which is the down triangle under the headrest drawing. The backlight will change to non-flashing.
4. Within another 5 seconds press the button (S4) which is the down triangle under the legrest drawing. Factory reset is done.
Refer to the drawing of your hand control on page 77 of the Service Guide to view these button assignments for SP, S1, and S4.
If button (S1) is not pressed within 5 seconds, or a different button is pressed,
then the programming sequence is aborted and you’ll need to repeat steps 1 to
