Power Recline Motor Actuator

Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
Power Recline Motor Actuator
(Click to see larger image and other views)
SKU: P333
Units in Stock: 11

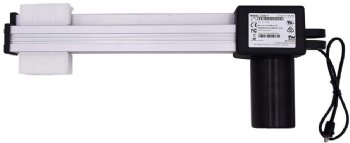

Replacement motor for power recliners and power theater recliners.

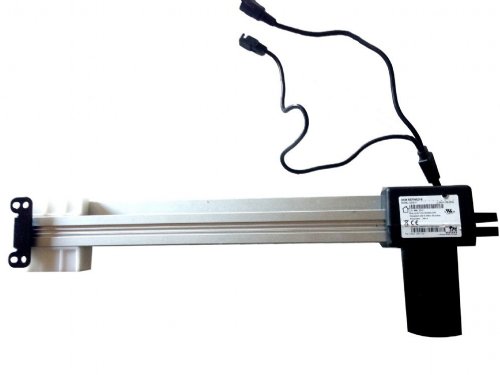

There are two connections into this motor actuator,
A thin two-prong cable with a round pin and a flat pin connects to the power supply. And a round 5 pin DIN connector connects to the hand control or switch mounted in your arm or seat.

This motor actuator is measured from the center of the mounting hole on the motor housing to the center of the white plastic moving block.

It measures 6.18" when completely retracted and 13.11" when completely extended.

Please refer to the image below for an illustration of how to install this motor and others. The power supply cable may come out the end of the actuator as shown or come  out the motor housing end.


Please enter your original model number in the box below

Part Type: Motor
Manufacturer: Limoss
$199.00
List Price: $279.00
You Save: $80.00 (29%)
